寸法: | 1881*1116*2160 | 力: | 9.15W |
---|---|---|---|
電圧: | 380V±38V | 重さ: | 4000kg |
環境温度: | 10〜40°C | 相対湿度: | ≤80% |
高度: | ≤2000m | 制御モード: | サーボドライブ+PLC+タッチスクリーン |
幅を切る: | 0.5-1.5mm | 材料の積み重ね容量: | 120kg/m³ |
定格容量: | 3000kg/h | ナイフドアの高さ: | 75mm |
ナイフドアの幅: | 400mm | ブレードの数: | 8 |
カッターヘッドの速度: | 50-300rpm | 刃の寿命: | 98時間 |
ハイライト: | 380V rotary cutting machine,PLC control tea cutter,vegetable cutting machine for tea |
Attribute | Value |
---|---|
Application | Vegetables, tea or similar materials |
Warranty | 1 Year |
Dimension (l*w*h) | 1881*1116*2160 |
Power (w) | 9.15 |
Voltage | 380V±38V |
Weight (kg) | 4000 |
Video outgoing-inspection | Provided |
Machinery test report | Provided |
Core components | PLC |
Environmental temperature | 10-40 ℃ |
Relative humidity | not exceeding 80% |
Altitude | not exceeding 2000m |
Incoming materials | tea/vegetables/herbs |
Control mode | servo drive+PLC+touch screen |

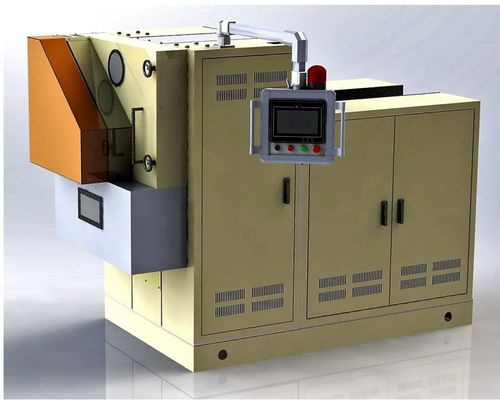

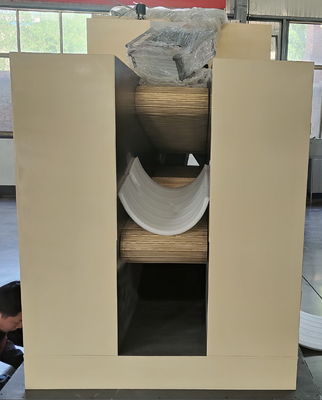

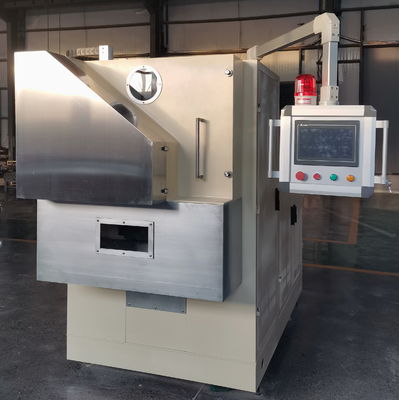

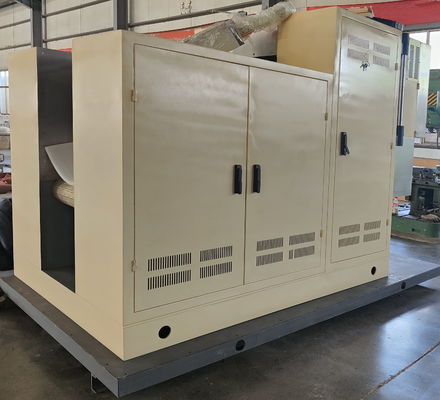

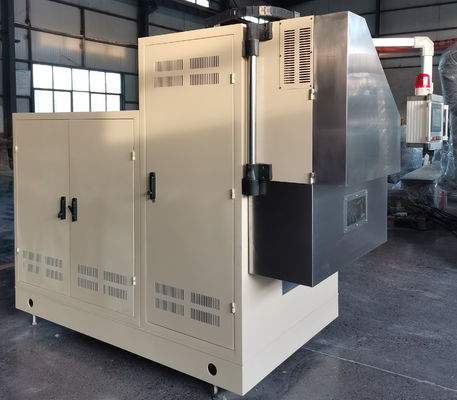

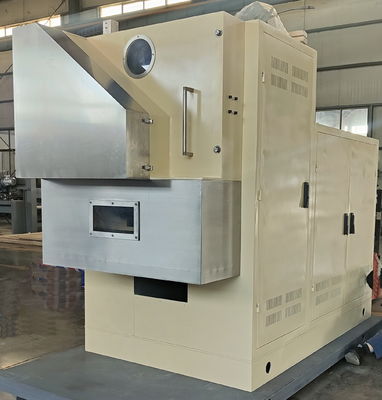

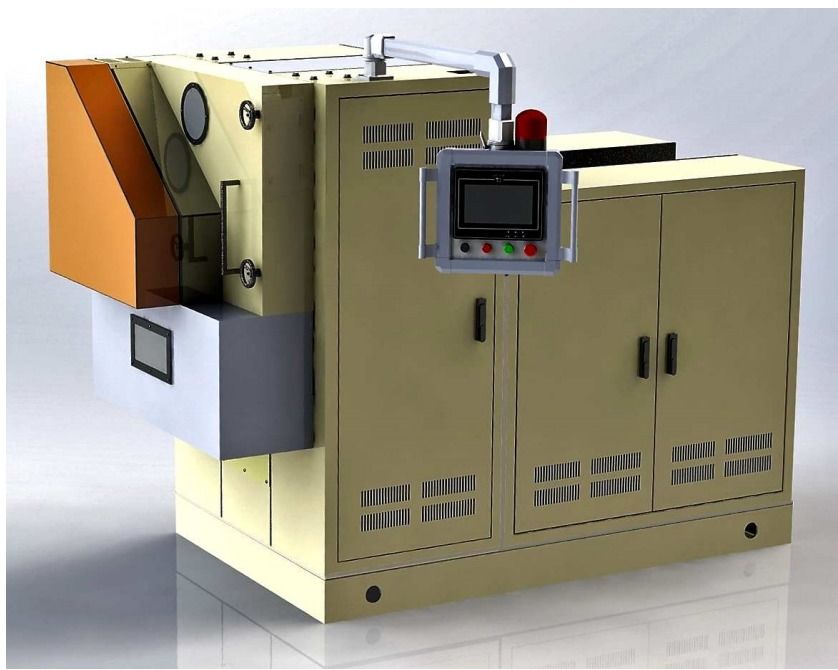

The MC84R rotary cutting machine is a specialized machine developed independently by our company for cutting vegetables, tea leaves, or similar materials. The MC84R rotary cutting machine consists of a body, feeding belt, compacting belt, cutter head, automatic sharpening device, automatic feeding device, and control system.
This machine adopts our company's innovative proprietary technology and automatic control systems such as servo drive, PLC, and touch screen, which can set and operate multiple parameters to meet different production needs.
Project | Unit | Parameter |
---|---|---|
Cutting width | mm | 0.5-1.5 |
Material reference stacking capacity | kg/m³ | 120 |
Rated capacity (with a cutting width of 1mm) | kg/h | 3000 |
Knife door height | mm | 75 |
Knife door width | mm | 400 |
Number of blades | Piece | 8 |
Cutterhead speed | rpm | 50-300 |
Blade lifespan | Hr | 98 |
Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and supply of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry.
We understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements.
Our comprehensive range of products includes spare parts for cigarette making, packing machine and filter making machine. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry.
