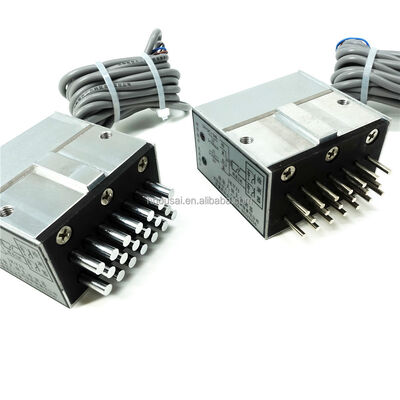

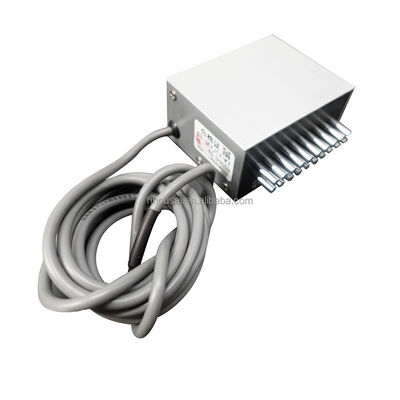

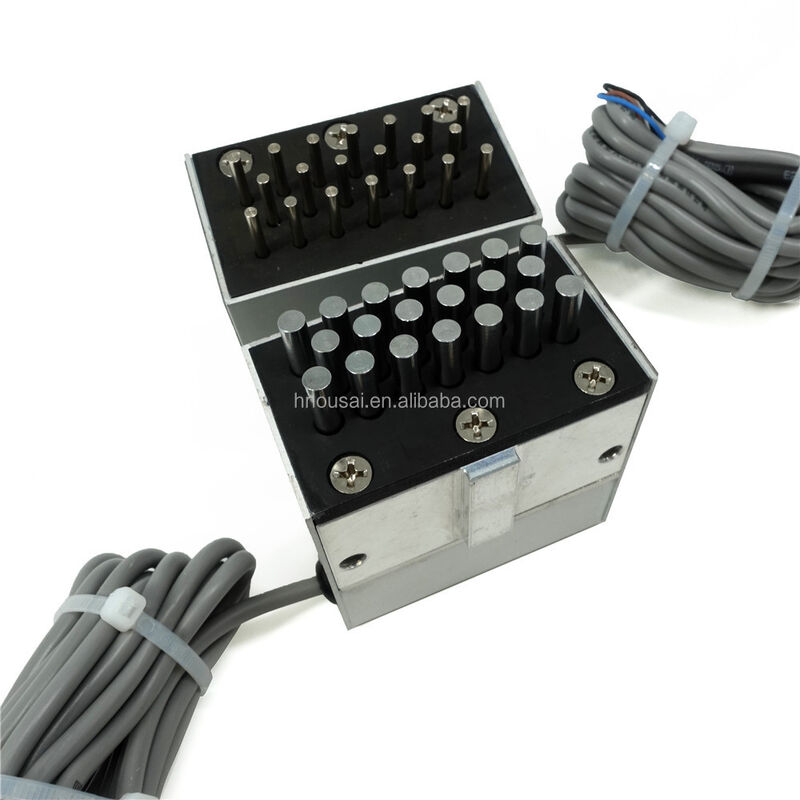

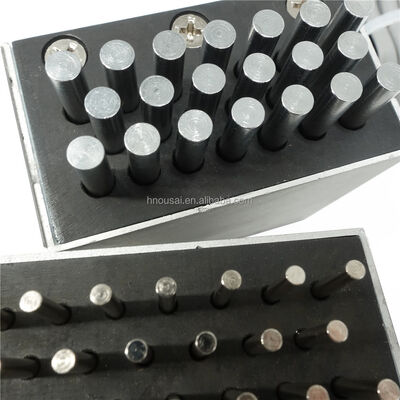

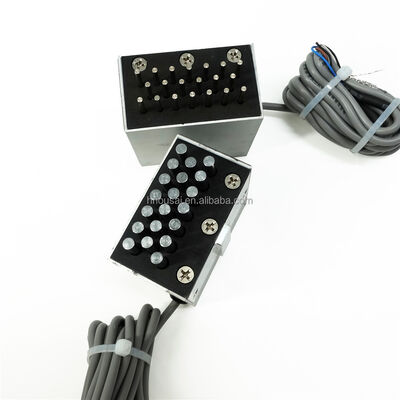

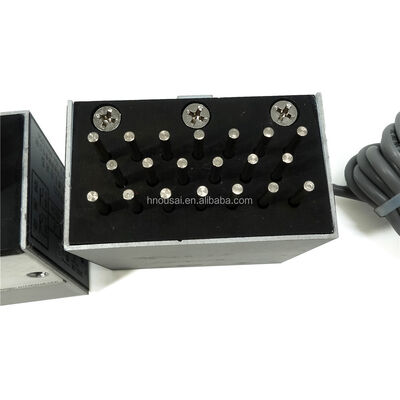

Online Detection Cigarette Distribution Detector for Molins / Hauni Cigarette Packing Machine

大画像 : Online Detection Cigarette Distribution Detector for Molins / Hauni Cigarette Packing Machine

商品の詳細:

起源の場所:	中国

お支払配送条件:

最小注文数量:	1
価格:	$760-1,300

連絡先

詳細製品概要

生産能力:	10000 PC月	ドリブンタイプ:	電気
自動グレード:	半自動	重量(kg):	8
保証:	1年	主なセールスポイント:	自動
製品名:	緩み端空フィルター検出器	サイズ:	キング/クイーン/スーパースリムサイズ
使用法:	セイシブ 3000/ セイシブ 6000 / HLP2	メイン電圧:	24VDC
特徴:	長い機能寿命	パッケージ:	カートン/木製
証明書:	セリウム/ISO	アプリケーション:	タバコ、タバコ
状態:	新しい	該当する業界:	製造工場、衣料品店、小売店、機械修理店、印刷店
ショールームの場所:	なし
ハイライト:	Molins Hauni cigarette detector , cigarette packing machine sensor , online detection cigarette distribution

Product Overview

A cigarette testing device for cigarette packaging machines located at a point in the manufacturing process just before the cigarettes are placed into cigarette packages, for simultaneously testing the ends of cigarettes disposed in a group. Magnetic Sensitive Loose-end Missing Filter Defective Cigarette Detector is a cigarettes location detection system, built-in 20 displacement magnetoelectric converters, used for dectecting the loose-end and missing filter rod, if the cigarette was detected loose-end or missing filter, the sensor will output signal, for rejecting the cigarettes into the pack. This system includes a probe in the form of a split fiber optics bundle located adjacent a conveyor or other transport means for cigarettes which travel along the conveyor with their axes substantially normal to the direction of travel of the conveyor. The fibers of the bundle are divided randomly and one branch extends to a light source and the other to a detector. In this fashion, light will be directed from the probe towards the tobacco end of the traveling cigarettes. The reflected light is transmitted through the other branch to the detector which is coupled with a bridge circuit for measuring the level of intensity of the reflected light. When a loose cigarette end is detected, either a memory circuit or wheel is actuated in order that the cigarette having the detected loose end will be eventually rejected by an ejection mechanism.

Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and supply of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry. We understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements.

Our comprehensive range of products includes spare parts for cigarette making, packing machine and filter making machine. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry.
